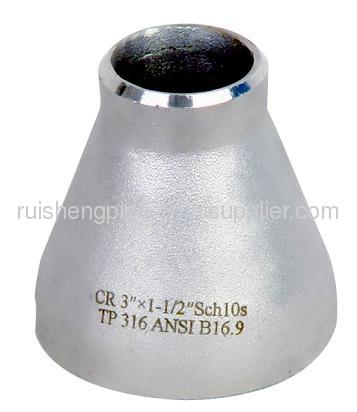

Pipe Reducer :
A Pipe Reducer is a kind of industrial pipe fittings used to connect two pipes (or tubes) of different diameters. It contains concentric reducer and eccentric reducer. The former is used on vertical pipes, and the latter is used for horizontal pipes.
Pipe reducers are mainly used in the following areas:
1. Pipe reducer is useful when there is a requirement on change of fluid flow rate.
2. It is used for pump inlet to prevent cavitation.
3. It is fit for the connectors of instruments, such as flowmeter and control valve.
Specifications for Pipe Reducer
Pipe Reducer | Production range |
Seamless pipe reducer | Welding pipe reducer |
Outside diameter | 1/2"~32" | 6"~60" |
Wall thickness | 4mm~200mm |
Product type | Concentric reducer, eccentric reducer |
Size
Seamless Pipe Reducer: 1/2"~32" DN15~DN800
Welding Pipe Reducer:6"~60" DN150~DN1500
Wall Thickness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. thickness: 200mm
Materials
Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Standards
ASME B16.9-2007 ASME B16.25-2007
MSS SP 75-2008 MSS SP 43-2008
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2616-1-1991 DIN2616-2-1991
ISO3419-1981 ISO5251-1981
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
Industries Served
Our pipe reducers have found many applications in a wide range of industries, such as electricity, petroleum, natural gas, chemical, shipbuilding, heating, papermaking, metallurgy and so on.
